Oil System Take Off Plate - Ford Duratec and 2.0L Ecoboost

The Mountune oil take-off plate is a convenient way to plumb in a remote oil filter housing or other oil system components. This product also allows an in-line oil cooler to be fitted and is  a perfect addition to our dry sump system.

Plates are supplied with O-rings to seal the plate to the block in place of the OEM filter housing. The housing also has a pressure sensor take-off which uses an 1/8 NPT thread, plug included

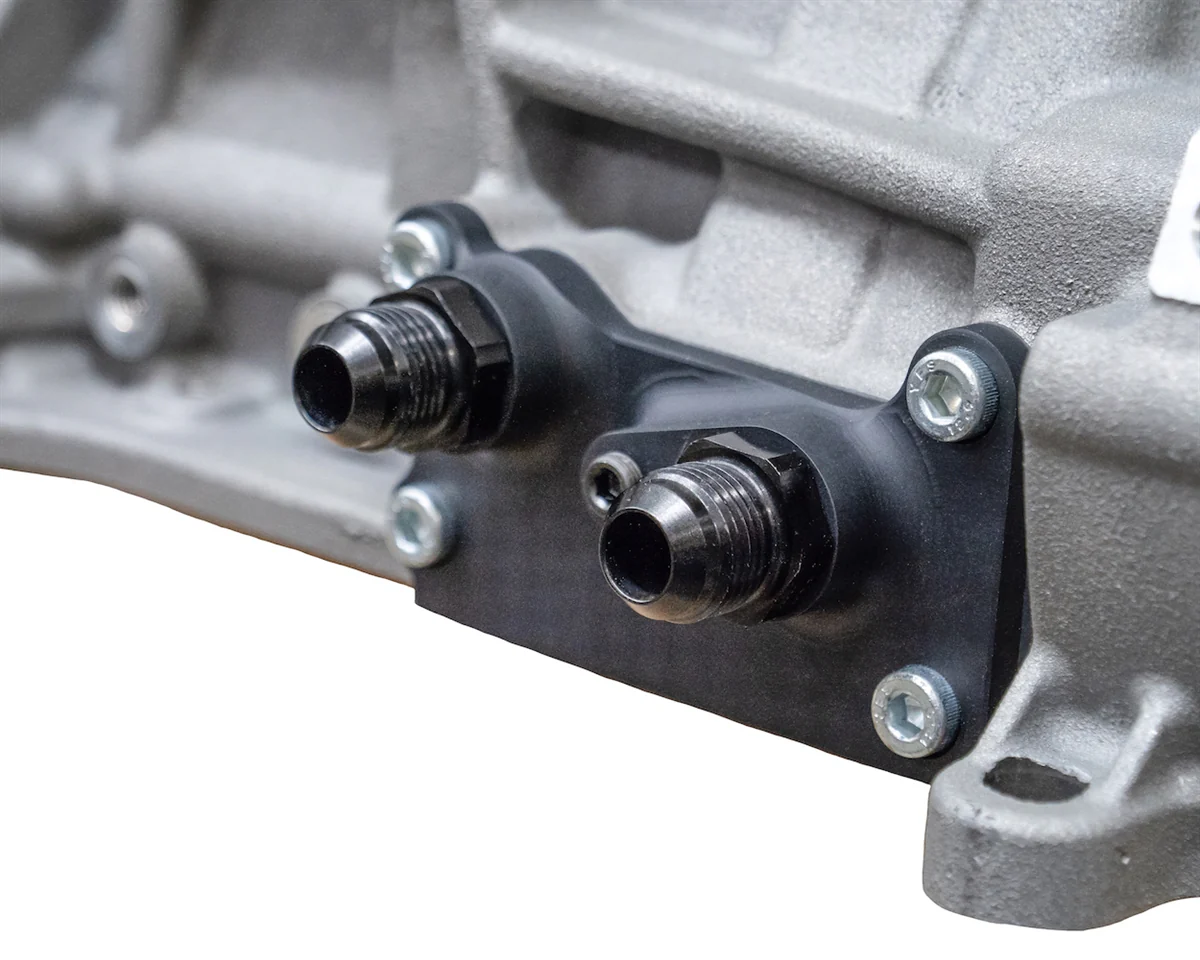

The plate bolts directly to the 1.8, 2.0, 2.3, 2.5 Ford Duratec and 2.0l EcoBoost engines and is ideal for installations with a limited amount of packaging space. As used in the Mountune Racing prepared 2.0L EcoBoost British Touring Car Championship and Chinese Touring Car Championship Super Production 2.0T engines along with many other motorsport applications.



Features:

• Billet oil take-off plate with hard anodized finish
• High temp BUNA-N O-rings
• 10AN Fittings with Viton O-rings

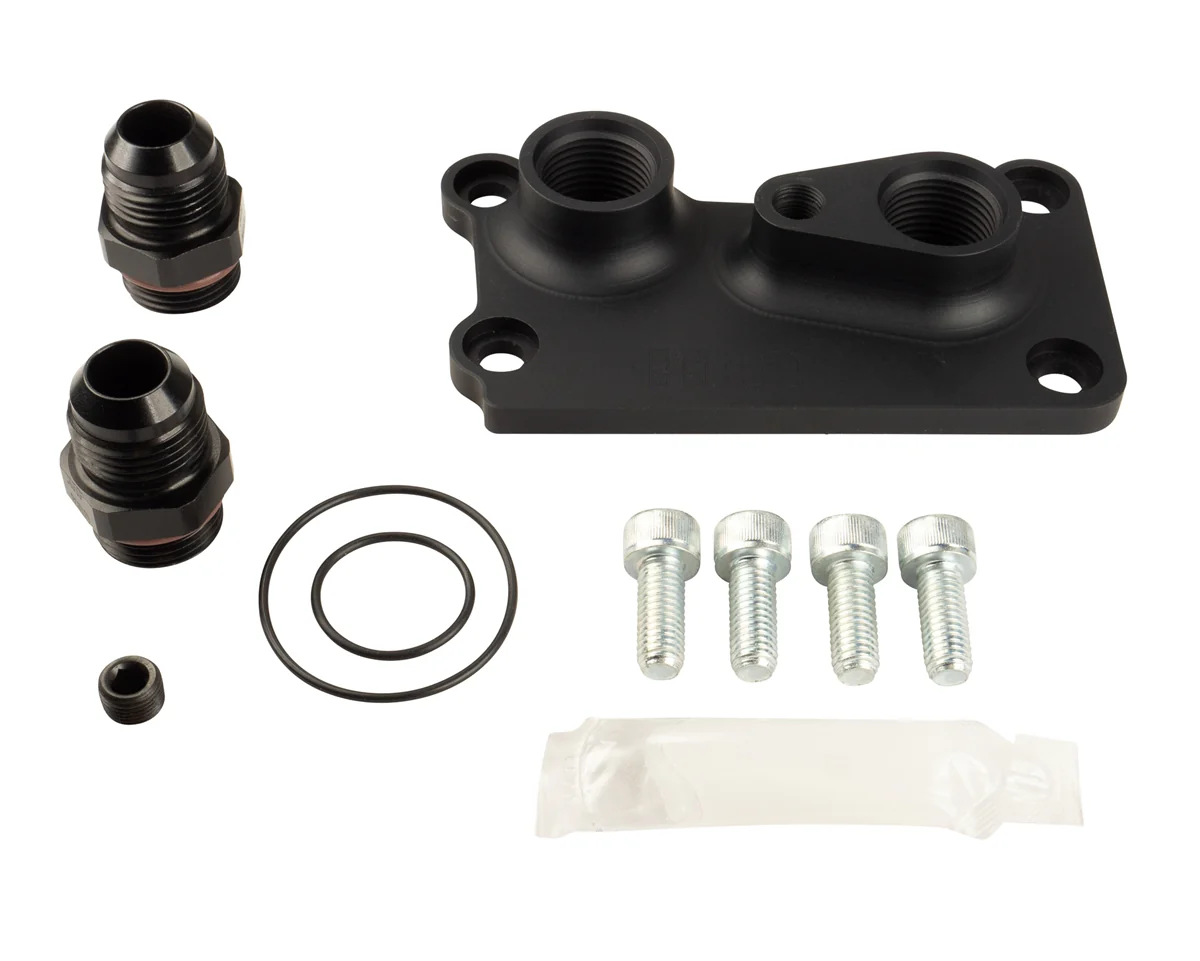

Includes:

• Take-off plate
• BUNA-N O-rings
• 10AN ORB to 10AN Male Fittings
• 1/8 NPT plug
• Installation hardware
• O-ring assembly lube
