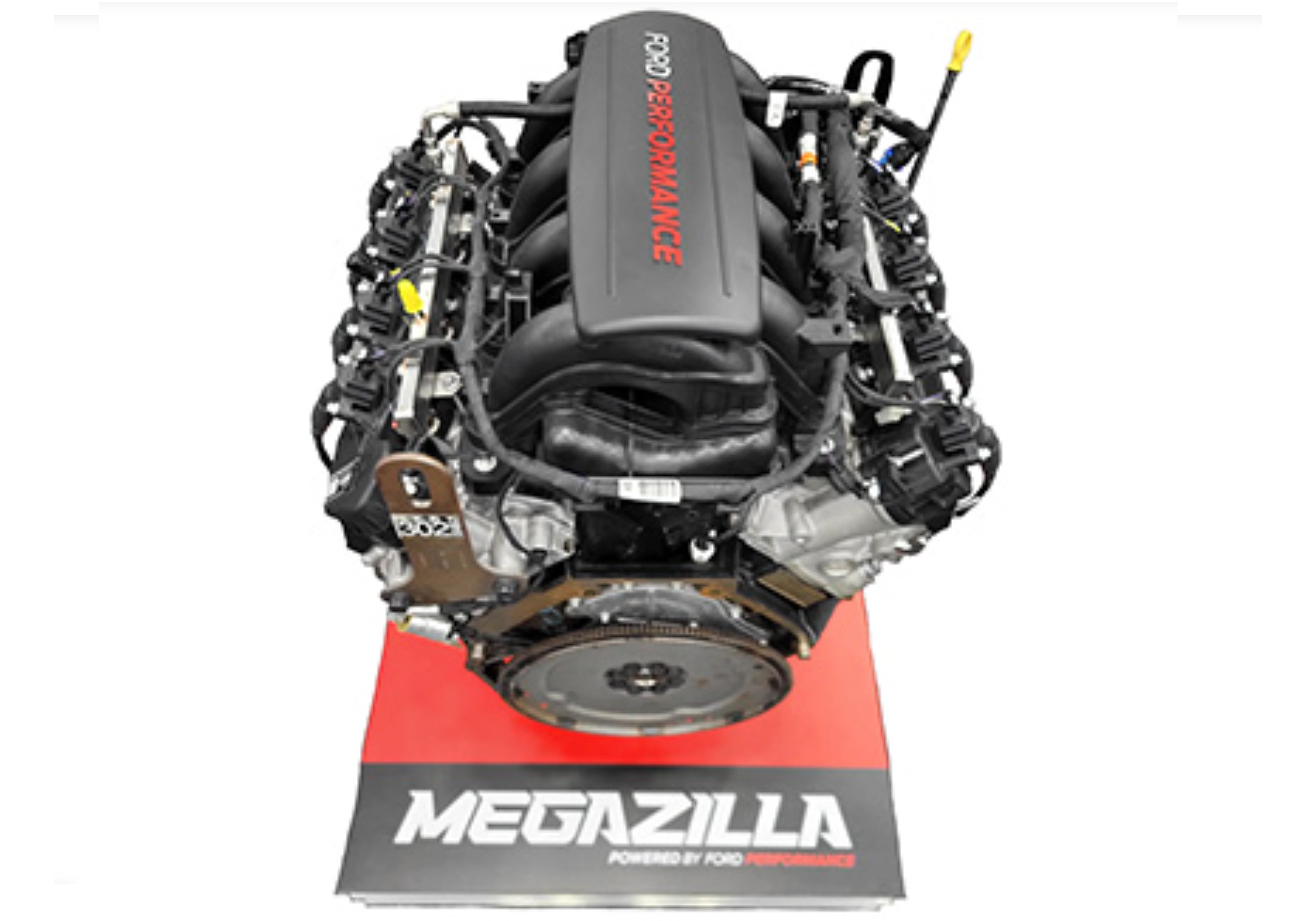

7.3L MEGAZILLA™ CRATE ENGINE

Ford Performance engine team has put together the 7.3L MEGAZILLA™ crate engine. MEGAZILLA™ features the Ford Performance 7.3L intake manifold, CNC ported cylinder heads, forged pistons and connecting rods. MEGAZILLA™ cranks out 615HP and 638 lb-ft of torque in a streetable package running on premium pump gas.

MEGAZILLA™ features:

• 7.3L displacement
• 10.5:1 compression
• M-6049-SD73P/M-6050-SD73P CNC ported aluminum cylinder heads
• M-9424-73LP low profile intake manifold
• M-9926-M5292 92mm throttle body
• Mahle forged pistons
• Callies H-beam forged connecting rods
• M-6303-SD73 production steel crankshaft
• M-6250-SD73A hi-performance 7.3L camshaft w/VCT delete
• M-6010-SD73 production cast iron block

Peak power output (J607 standard):

• 615HP @ 5,750RPM
• 638 lb-ft of torque @ 4,650RPM
• Over 500 lb-ft of torque from 2,500RPM to 6,000RPM

Assembly includes:

• Coils/plug wires/spark plugs
• production oil pan
• M-6038-73 shipping/storage cradle
• production engine wiring harness

*Bellhousing bolt pattern same as the Ford 4.6/5.4 and Coyote 5.0L*

For control packs, please see M-6017-73M and M-6017-73A. Custom calibration is required.

For starter, please see M-11000-SD73

For FEAD, please see M-8600-SD73
